Engineered for Efficiency – Built to Last

Chart's bulk cryogenic storage systems are custom engineered to meet your application's specifications. Chart's complete system solution package ensures quality liquid or gas to keep your processes operating at peak efficiency. Built for long-term integrity and industry-leading efficiency, these systems give you the highest performance at the lowest operating cost.

Bulk Tank Systems

Each Chart tank is engineered with a high-degree of standardization for cost efficient production and to keep delivery times short. A range of bolt-on modular options ensure that our standard tanks cater for >95% of customer requirements. Further customization available on request.

  • Complete range of tank sizes from 1500* to 264,000 US gallons (6,000 to 1,000,000 liters) at maximum allowable working pressures between 175 and 500 psig (12 and 37 barg)
  • Horizontal and vertical configurations
  • Perlite or Composite Super Insulation™ system, which ensures high thermal performance, extended hold times, low life-cycle costs and low weight for reduced operational and installation costs
  • Double jacketed construction comprising:
    • Stainless steel inner vessel
    • Carbon steel outer shell with integrated support and lifting system for simplified transport and installation
    • Durable coating that provides maximum corrosion resistance and meets environmental compliance standards

Superior Design & Engineering

  • Modular piping systems combine high performance, durability and low maintenance
    • Reduced number of joints minimizes the risk of external leaks and facilitates simplified installation
    • Easy access to control valves and instrumentation
      • A comprehensive range of safety features afford maximum protection to operators and equipment
      • Meet seismic requirements
      • Engineered, manufactured and tested in accordance with all major international design codes and associated regional requirements
      • Unrivaled engineering and manufacturing capacity
      • World class facilities strategically located in centers of demand
      • Dedicated range for carbon dioxide (CO2)
* a smaller capacity 900 US gallon (3,400 liter) capacity tank is available as standard from our European facilities and a 792 US gallon (3,000 liter) capacity tank is built in India.
Bulk Tanks for CO2 Service

We use the same high integrity vacuum insulation systems for our carbon dioxide storage tanks. An all-metal outer jacket eliminates insulation deterioration from water condensation that is commonly found in foam insulated tanks, especially as they age.

Specialty Fill Plant Storage Tanks

Siphon 100® and Siphon Zero specialty bulk tanks offer increased efficiencies and zero losses by utilizing 100% of the liquid content 100% of the time. They are the benchmark standard for filling high pressure cylinders, liquid cylinders and mobile equipment at industrial gas fill plants.

Chart Vacuum Technology®

At Chart we have always taken pride in developing the best thermal insulation system possible in our cryogenic bulk tanks. Our Composite Super Insulation™ and Chart Vacuum Technology® is at the core of why Chart bulk tanks are recognized around the world as the premier cryogenic bulk storage tank.

Options & Accessories

Optimize your liquid storage and gas delivery system with our Vaporizers, Vacuum Insulated Pipe (VIP), OnSite™ Telemetry System and Tank-Tel® Liquid Level Gauge.

Video Library

}

Chart University

Learn from the experts. Chart provides a range of training programs promoting the safe and efficient use, application and installation of our products. Learning incorporates practical and classroom sessions together with factory and site visits with all material presented and demonstrated by Chart experts.



Engineered Systems

An engineered system, also known as a cryogenic system, is a custom, application focused, complete storage and vaporization solution that utilizes Chart's core cryogenic products as the basis of design. Chart designs and builds the total equipment scope for full turn key solutions and accompanies you through the complete project lifecycle, from feasibility study to on-site commissioning. Our extensive after-sales network ensures that your equipment continues to perform safely, reliably and at optimal performance in the field.

cryogenic engineered system LNG to power

cryogenic engineered system for water treatment



cryogenic engineered system for carbon dioxide

Equipment scope includes:

  • Cryogenic storage tanks
  • Vaporizers
  • Vacuum jacketed pipework
  • Control system
  • Valves, heaters, and other ancillaries as required
  • Project scope can also be widened to include Chart cryogenic distribution equipment, such as trailers, semi-trailers and ISO containers, for complete virtual pipeline solutions

Engineered systems can be configured for any demand requirement and a range of liquid gases, including oxygen, nitrogen, LNG, hydrogen, carbon dioxide, ethylene, helium and nitrous oxide. They are used as a more efficient, reliable, cost effective, scalable and safe alternative to high pressure gas storage in a huge variety of applications where gas is required at the point of use across industry, science, leisure, medical, food and beverage, water treatment, aerospace and more. Chart engineered systems are fundamental to the energy transition bringing natural gas and hydrogen to businesses and regions not connected to the pipeline grid.

}

Leading the Energy Transition

Our Chart China team recently celebrated completion of liquid hydrogen storage tanks engineered and built in Changzhou. With world class facilities across three continents and a wealth of cryogenic and compression expertise, Chart is uniquely positioned to accelerate the energy transition through the adoption of hydrogen.




Additional Resources

Elevate your professional capabilities in the cryogenic industry with Chart University, a series of technical training events that are designed by our experts and combine classroom, practical and site learning. The aim always is to ensure graduates leave with a better understanding of how to handle and operate cryogenic gases and equipment with maximum efficiency and safety.
Chart Parts is an e-commerce platform that provides a familiar internet shopping experience for equipment spare parts, servicing, training, operating manuals, events and more.



Introducing Cryogenics

Cryogenic technology is used to liquefy gases for their safe, efficient and economic transport. Liquid gases are used in hundreds of applications across industry, science, leisure, food and beverage, medical, energy, aerospace and many more.

Chart University

Chart University is a series of technical training events designed by our experts and combine classroom, practical and site learning. The aim is for participants to graduate with a better understanding of handling and operating cryogenic gases and equipment with maximum efficiency and safety.

Chart Parts

ChartParts.com is the e-commerce platform to order authorized OEM spare parts for Chart equipment, training events, Cryo-Lease and more.

Cryogenic Trailers

Complete range of cryogenic trailers, semi-trailers, truck-mounts and swap-bodies. Built in the US, EU and China.

Cryogenic Data Book

Chart's Cryogenic Data Book is the go to guide for all major liquid gas properties and the specialty equipment used to safely, efficiently and economically store, transport and dispense them.

Cryogenic Tank Training

This training is designed for product managers, designers, installers, field service engineers, technicians, sales and marketing personnel, and is open to current distributors and customers of Chart.

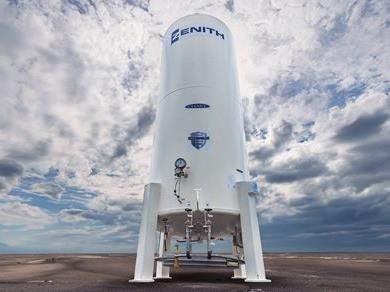

Zenith
