Applicable Solutions

As well as the standard liquid gases mentioned above, transport solutions for liquid nitrous oxide, ethylene, propane, butane, butadiene and ethylene oxide are available on request.



Unrivaled Expertise and Pedigree

Chart has cryogenic trailer manufacturing across the US, in Europe and in China. In the US our Theodore, AL facility traces its history back to the James Russell Engineering Works, Inc., and in Europe incorporates renowned specialist GOFA and the capabilities of another Chart acquisition, VRV.

Chart engineers will work with you to determine the best configuration for your requirements and, regardless of manufacturing location, all equipment is built to the same highest quality standards and in accordance with all associated relevant pressure vessel and transportation codes and regulations.

Liquid Hydrogen Delivery Units

Engineered and built to address the challenges of optimizing payload, reliability and maintainability to meet growing market demand for liquid hydrogen.

liquid hydrogen transport trailer

Our facility in Theodore, Al has been designing and building liquid hydrogen trailers for more than 55 years, including North America's very first vehicle.


}

Theodore, AL

In October 2020, Chart acquired a 300,000 ft2 facility in Mobile, Alabama. While the factory had a proud legacy and industry leading liquid hydrogen trailer manufacturing, it had limited capacity.
In 18 months Chart has increased trailer capacity 5-fold and created >130 jobs in clean tech.



European Manufacture

GOFA, based in Germany, is Chart's specialist European manufacturer providing a complete range of truck bodies including rigids, semi-trailers, mini-bulk and swap bodies.

  Cryogenic Trailers for LIN, LOX, LAR, LNG, LBG and Ethylene

lng transport trailer
oxygen transport trailer
cryogenic transport trailer


Stainless steel inner and outer vessels.




Features & Specifications:

  • Ergonomic piping design
  • Best in class vacuum and hold times
  • Low center of gravity
  • Rear side and center cabinet
  • Various pressure stages
  • ADR, IMO, RID, ASME, EAC-TR (GOST)

For liquid carbon dioxide trailers:

  • Duplex material
  • Foam insulated tank
  • Optional vacuum insulated tank



Innovation is Our Strength

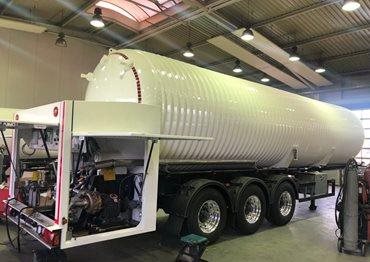

Introducing the new generation of cryogenic transport trailers for the European market. A combined effort from our GOFA, Flow Instruments and VCT Vogel subsidiaries.




China Manufacture

Cryogenic transport trailers for oxygen, nitrogen, argon, carbon dioxide and LNG engineered and manufactured in China in accordance with all applicable domestic transport and pressure vessel legislation.

cryogenic transport trailer

  • Available as single, double and triple axle configurations
  • Designed and built fully in accordance with Chart specifications and standards
  • Incorporates all Chart features for safety, efficiency and ergonomic design

}

Leasing in US

Flexible lease terms available across Chart's complete range of cryogenic storage and distribution products including tanks, vaporizers, liquid cylinders, MicroBulk systems, mobile units, specialty medical and disaster relief liquid gas trailers and more.



Additional Resources



Operating Manuals

Chart maintains a digital library of current and archived operating manuals. Access the manuals for product details, safe operation, installation, preventative maintenance, troubleshooting and more.

Chart Parts

ChartParts.com is the e-commerce platform to order authorized OEM spare parts for Chart equipment, training events, Cryo-Lease and more.

Chart University

Chart University is a series of technical training events designed by our experts and combine classroom, practical and site learning. The aim is for participants to graduate with a better understanding of handling and operating cryogenic gases and equipment with maximum efficiency and safety.

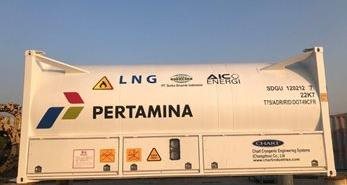

Cryogenic ISO Tanks

20' and 40' containers ensuring safe, economical and convenient transport of LNG by road, rail and water.

Cryogenic Data Book

Chart's Cryogenic Data Book is the go to guide for all major liquid gas properties and the specialty equipment used to safely, efficiently and economically store, transport and dispense them.

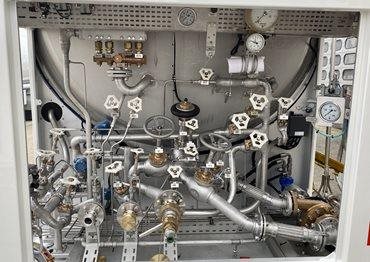

Type C Calibration in EU

Through Chart VRV in Italy Chart provides a Type C inspection body for the verification and conformity of measurement systems mounted on tankers and trailers of vehicles transporting liquid air gases, LNG, CO2 and other liquefied gases that require both ordinary and extraordinary maintenance and periodic metrological checks.




  Ullyses
Through our VRV subsidiary Chart continues to provide the Ullyses cryogenic semi-trailer for LIN, LOX, LAR, LH2, LCO2, LN2O and LNG.

  • Available as full stainless steel, full aluminum, bi-metallic aluminum/stainless steel or bi-metallic carbon steel/stainless steel
  • Capacities from 2,000 to 67,000 liters
  • Pressure range from 3 to 24 bar
  • Design temperature -196C
  • Designed according to EN 13530/TPED or ASME VIII
  • Multi-layer super insulation with vacuum
  • All stainless steel pipe and valves
  • Automotive grade 3 finish, 3 layers according to customer specifications
  • Scope also includes pressure building vaporizer, safety relief devices for both inner and outer vessels and complete plumbing arrangement for normal operation

cryogenic semi-trailer



Technical Library

View and download sales literature, technical manuals and more.

Aftermarket - Cryogenic Systems (Europe)

Summary of Chart's extensive European network for aftermarket services including servicing, repairs, refurbishments, spare parts and leasing.

Chart China Portfolio

Supplying high quality cryogenic products to local and international markets.

Cryogenic Systems (EMEAI)

Summary of the cryogenic systems engineered and built by Chart in Europe for the EMEAI region.

Cryogenic Transport Solutions (Europe)

Vehicles for liquid air gases, CO2, LNG, liquid and gaseous hydrogen.

Flow Instruments - Calibration and Service

Aftermarket services available from Flow Instruments to keep your flow measurement equipment operating at peak accuracy.

Flow Metering Systems - Gaseous Hydrogen

Gaseous hydrogen flow metering systems from Flow Instruments.

Flow Metering Systems - LIN LOX LAR CO2

Flow metering systems for liquid nitrogen, oxygen, argon and carbon dioxide from Flow Instruments.

Flow Metering Systems - LNG

LNG metering systems from Flow Instruments.

Made in China – Industrial Gases Catalogue

ISO’s available in multiple cryogenic services for intermodal transportation needs.

Tank Trailers & Containers

For gases, liquids and dry bulk. Manufactured by GOFA.

Transport Solutions for Emerging Markets

Chart has facilities in Germany, India and China that manufacture a complete range of cryogenic trailers and ISO containers for the safe and efficient distribution of liquid gases by road, rail and sea for emerging markets.

WarrantyPLUS

Mobile equipment service package available for all Chart and GOFA vehicles built in Europe. 100 point inspection plan can be carried out at any of our cryogenic service centres. Extends manufacturer's warranty up to 6 years.

Creating a Competitive Advantage in Mobile Liquid Gas Supply

Data Book for Cryogenic Gases and Equipment

GOFA Transport Solutions for Gases

Products manufactured in Europe for EMEAI region.

LH2 ST17600 Transport Trailer (Made in USA)

Pressure Transfer Technology ensures 300 GPM off-load rates.

LH2 ST8500 Transport Trailer (Made in USA)

Shorter, compact trailer to use in tandem or double configuration.

Liquid Tube Trailer

HP2-2500 liquid tube trailer manufactured in US.

LNG Transport Trailer (US build ST-12700 & ST-16300)

LNG trailers optimized specifically for transporting liquefied natural gas over US highways.

Mobile Equipment - HP2-2500 Liquid Tube Trailer

Manufactured in US.

Mobile Equipment - Oil Field Nitrogen Tanks

For the high-pressure nitrogen applications, this LIN tank is designed to be truck mounted. Designed from field-tested experience in the oil fields. Manufactured in US.

Rail Car - Argon Tank Car SR-386

DOT-113A90W tank car optimised for carrying maximum payloads of argon. Manufactured in US.

ISO/IEC17020

Through Chart VRV in Italy Chart is implementing a Type C inspection body for the periodic verification of metrological systems serving vehicles delivering liquefied gases and cryogenic liquids.
